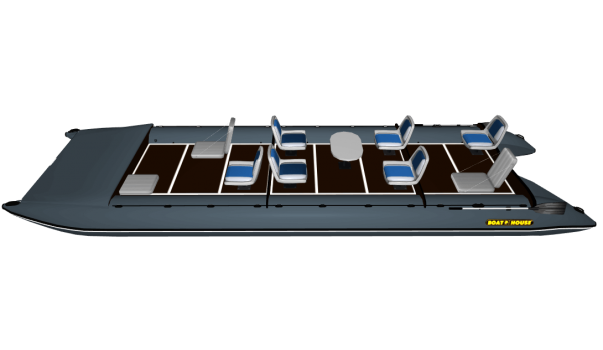

Catamaran for alloy TRAVEL 770
Catamaran TRAVEL 770 TRAVEL 770 - a large ten-seat catamaran, which can take on board 6 more adults. The carrying capacity of 1,200 kg and the width of 239 cm allow for all to accommodate. It can be used for water walks, hunting, fishing and diving. But its main purpose is travel on any large water expanses - from medium rivers to the sea. Travel 770 has three cockpits: captain's - 132 cm long, middle - 197 cm, and front - 197 cm. Thanks to the intermediate frames, the rigidity of the boat is quite high. And in combination with a decent length and width, and 55-m cylinders, you get a comfortable "off-road vehicle" for long-distance voyage.
The version of the cruiser involves the installation on the front cockpit of an inflatable flooring and a large two-layer tent with reliable attachments and two entrances: to the middle cockpit and to the front large luggage compartment. The average cockpit allows you to install four, or even six seats and a table - i.e. create a wardroom and galley at the same time. Well, the captain will equip his cockpit, as it is convenient for him. And, of course, for full comfort, the captain's and the middle cockpit should be protected with a tent.
But this is just one of the layout options. If additional equipment for this catamaran includes side platforms with tents, then we get a real BOTHAUS, on which you can live with full comfort on the water, as much as you like, even all summer. The useful area of the TRAVEL 770 catamaran is more than 12 sq. M, and with lateral platforms - more than 18 sq. M!
All the basic information about the TRAVEL catamarans can be found in more detail in the "General description" section, where you can get acquainted with the features and characteristics of not only the 770 model, but the entire model line. All TRAVEL models are structurally identical, except for length, and accordingly - weight, interior space, load capacity and passenger capacity. And, the build time differs slightly.
Front take-out of cylinders is 140 cm, of which 110 cm is a very large locker, 180 cm wide. Large removal of cylinders is needed for good germination on the wave, excellent running characteristics of the catamaran and its "off-road" qualities.
The rear removal of the cylinders is 90 cm. On it are installed spoilers. It is also very important for the correct weighting of the boat and sufficient buoyancy of the stern. And also - to maintain the horizontal position of the boat during acceleration and at any speed. Interceptors protect from splashes and give an additional lift force to the stern.
It should be noted that no matter how you manned Travel-Max 770A, its excellent running and performance characteristics will remain the same. It is equally easy to move under a light motor 5 - 6 hp. with a speed of 20 km per hour, under sail, with an average wind of 10 - 12 km per hour, and even on oars. Yes, it's a fact, on the oars this huge boat quietly goes 5 km per hour. It's not much, but if you are rafting along the river - this is quite enough to enjoy the silence in motion. Well, the comfort that this catamaran provides, you definitely will not find on any other inflatable boat.
"Having BOTHAUS - you live with pleasure".
Catamarans TRAVEL - are the biggest inflatable boats manufactured by BOATHOUSE. They are made of five-layered german PVC fabric, marine plywood and aluminum. Very safe and reliable "frame" design, with protection of the balloons over the entire length, indicates the quality of the catamarans. These boats are great for travel in any water areas: from medium and mountain rivers to large water reservoirs and sea.
- are large, comfortable, and safe water "SUVs".
Thanks to quick and easy assembly, excellent stability and passability, they are perfect for hunting and fishing, diving and multi-day trips. Thanks to very wide cockpit (the width of hard flooring - is 130 cm, and used width of the boat - is 190 cm), diameter of balloons is 55 cm, absolutely flat rigid deck with non-slip covering, self-draining cockpits and a huge locker in the bow of the boat, size of 180 cm x 105 cm. A large load capacity allows us to accommodate the passengers and all their equipment.
TRAVEL catamarans, despite its size, as well as all Boathouse models, differs excellent hydrodynamics and excellent technical and operational characteristics. Here are the main benefits:
- Easy and quick assembly;
- A large load capacity;
- Rigidity and absolute safety;
- Increased passability;
- A huge living space;
- The opportunity to live on the water;
- Good controllability and speed;
- Excellent stability, directional stability and germination rate on a wave;
- A huge range of models and additional equipment for fishing, recreation and travel.
TRAVEL catamarans, even the largest models, are easily moves on the oars. With the low-power, and therefore cost-effective and low-cost engines, these boats are using the whole speed range, reaching 19 kilometers per hour with the engine of 5 hp with one person. Moreover, each additional passenger will reduce the speed by only 1-1.5 km per hour. All TRAVEL-MAX catamarans have four pressurized compartments, self-draining valve in the cockpits, reinforced transom for engine power of up to 10 hp, bottom that does not touch the water surface, tough non-slip deck and protection of the balloons. These things allow you to not pay attention to rocks and driftwood, and turn over, with a width of 240 cm, is impossible.
TRAVEL catamarans are perfectly fit for relaxation and traveling with your family or company. You can sunbathe and swim, fish and hunt, cook and eat, travel and live on the water. In just a few minutes you can inflate special flooring made off PVC, and put two-layer tent 3 + 1, securely fastened to the boat. If this is not enough, you can add one or two side platforms, turning your catamaran into large comfortable cruiser, which comfortably accomodate 7 adults and 3 children! The total used area of this Boathouse can reach 20 square meters and load capacity - almost 2t! Sleeping on the water in a boat is very comfortable - warm, soft and cozy. And most importantly - entirely safe.
Due to its rigid construction, catamaran moves on protected from below, hydrodynamic balloons without touching the water surface and with minimal resistance. With 1L of gasoline you can travel more than 20 km.
"Having a BOATHOUSE - means living with pleasure"
|Catamaran for alloy TRAVEL 770|
|Product Code:||TRAVEL 770|
|Вес настила, кг:||86|
|Габаритные размеры, см:|
|Используемая ширина кокпита, см:||190|
|Размер упаковки, см:||215*60*50|
|Ширина жесткого настила, см:||130|
|Кол-во гермоотсеков, шт:|
|Плотность ткани ПВХ:|
|Плотность ткани ПВХ||900|
|Вес лодки, кг:|
|Вес лодки без настила, кг:||109|
|Вес упаковки: лодка настилом кресла насос рем.комплект сумка||202|
|Осадка при полной нагрузке, см:|
|Осадка при полной нагрузке||28|
|Количество длина кокпитов:|
|Количество и длина кокпитов||132*197*197|
|Макс. мощность двигателя, л.с.:|
|Макс. мощность двигателя||10|
|Максимальный запас хода на 1 л бензина, км:|
|Максимальный запас хода на 1 л бензина||22|
|Размер багажного отделения, см:|
|Размер багажного отделения||180*110|
|Спальных мест, чел.:|
|Толщина усиленного транца, мм:|
|Толщина усиленного транца, мм:||48|
|Максимальная скорость, км/ч:|
|Максимальная скорость на веслах||5|
|Максимальная скорость с двигателем 2,5 л.с||12|
|Максимальная скорость с двигателем 6 л.с||18|
1. Casing with inflatable balloons, reinforced transom and front frame - 1. 2. Germotooseki - 4. 3. Interceptors - 2. 4. The intermediate frame - 2. 5. The front locker - 1. 6. Aluminum pipe - 1. 7. Pali in aluminum profiles - 8. 8. Total valves - 10. 9. Securing the flooring on cylinders - 16. 10. Fixing equipment - 6.11. Privalniy bar - 2. 12. Redan in the bow - 2. 13. Roiling edited with PVC cloth - 2. 14. Stabilizers of exchange rate stability - 2. 15. Closing of cylinders along the entire length - 2. 16. The insurance line - 2. 17. Trays for towing and carrying - 2. 18. Mooring and carrying handles - 2. 19. Vesla with stainless steel oarlocks and paddle holders - 2. 20. Protective PVC cape on the locker - 1. 21. Cover for the boat - 1. 22. Bag for flooring and equipment - 2. 23. The pump is 6 liters - 1. 24. Rem.set.-1. 25. The package of documents - 1.
