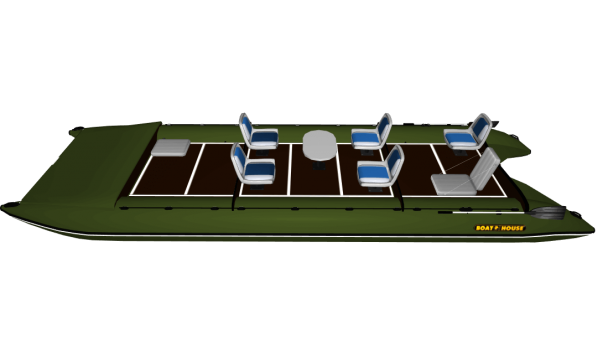

Catamaran for alloy TRAVEL 700

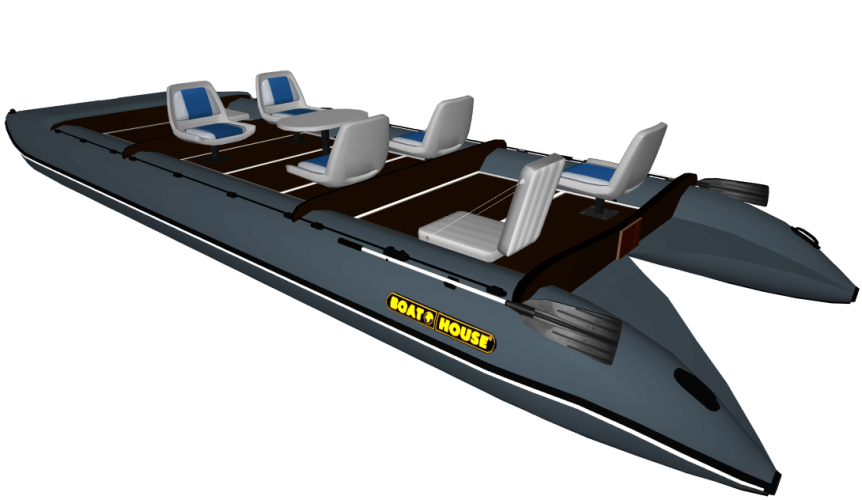

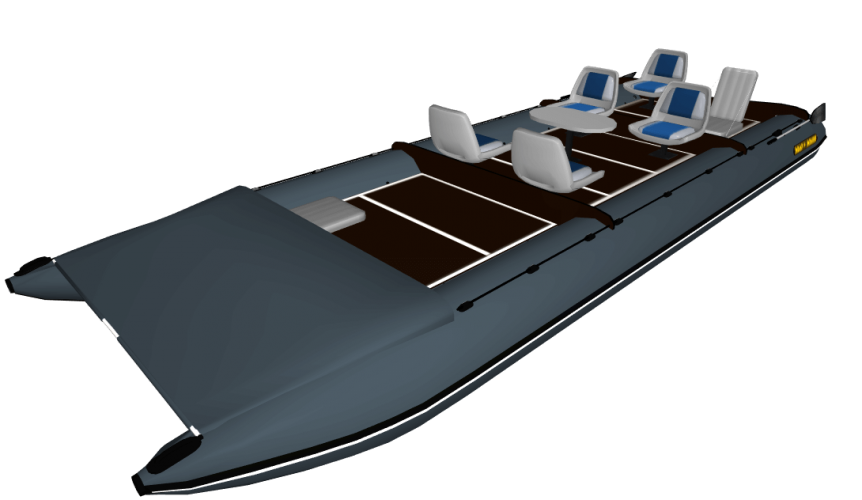

Catamaran TRAVEL 700
Front removal of hydrodynamic cylinders is 140 cm, of which 110 cm is a large locker, 180 cm wide. All your things will fit in it, and on top of the rain they will be protected under a PVC cloak. Such removal of cylinders is necessary for good germination on the wave, excellent running characteristics of the boat and its "off-road" qualities - that is, patency.
The rear removal of the cylinders is 90 cm, on which the spoilers are installed. It is also very important for the correct weighting of the boat and sufficient buoyancy of the stern. And also - to maintain the horizontal position of the boat during acceleration and at any speed. The interceptors extinguish the spray and give a lift to the stern.

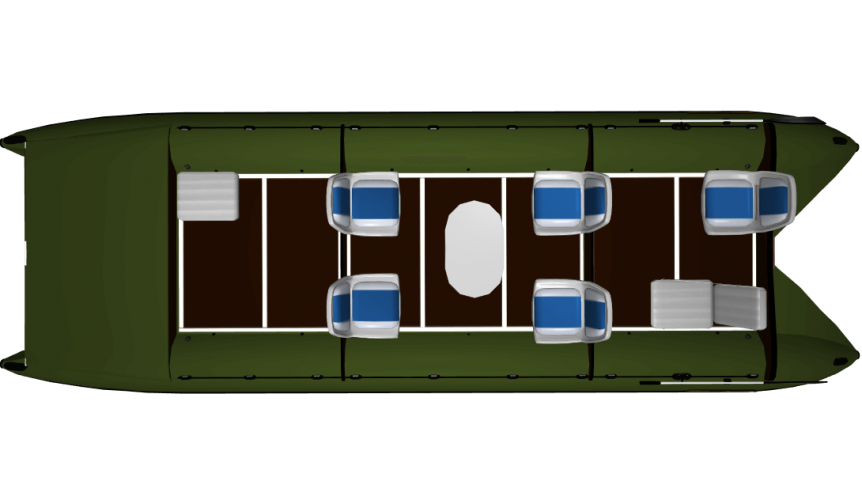

Travel 700 - a fully eight-seater catamaran, with the possibility to take on board six more people. Its carrying capacity is more than 1 ton! The interior of the catamaran is divided into three cockpit frames: captain's - 132 cm long, central - 197 cm, and front - 132 cm long. The width of the boat used is 190 cm. There are many options for using this catamaran. You can make it a cruiser, having installed on the middle cockpit an inflatable flooring with a tent. You can add one or two side platforms, and turn the central cockpit into a wardroom and a galley. And you can equip it for fishing or hunting for a large company. Everything depends only on your imagination and desires. The used area of 11 sq.m and a huge selection of additional equipment and accessories allow you to do a lot.
But the main thing in the TRAVEL 700 is its excellent running and performance characteristics, a huge interior space with a smooth non-slip surface and self-draining cockpits. Its excellent cross-country ability, efficient use of small motors, high safety and economy - will constantly give you a sense of pride, comfort and opportunities.
"Having BOATHUSE - you live with pleasure".
Catamarans TRAVEL - are the biggest inflatable boats manufactured by BOATHOUSE. They are made of five-layered german PVC fabric, marine plywood and aluminum. Very safe and reliable "frame" design, with protection of the balloons over the entire length, indicates the quality of the catamarans. These boats are great for travel in any water areas: from medium and mountain rivers to large water reservoirs and sea.
- are large, comfortable, and safe water "SUVs".
Thanks to quick and easy assembly, excellent stability and passability, they are perfect for hunting and fishing, diving and multi-day trips. Thanks to very wide cockpit (the width of hard flooring - is 130 cm, and used width of the boat - is 190 cm), diameter of balloons is 55 cm, absolutely flat rigid deck with non-slip covering, self-draining cockpits and a huge locker in the bow of the boat, size of 180 cm x 105 cm. A large load capacity allows us to accommodate the passengers and all their equipment.
TRAVEL catamarans, despite its size, as well as all Boathouse models, differs excellent hydrodynamics and excellent technical and operational characteristics. Here are the main benefits:
- Easy and quick assembly;
- A large load capacity;
- Rigidity and absolute safety;
- Increased passability;
- A huge living space;
- The opportunity to live on the water;
- Good controllability and speed;
- Excellent stability, directional stability and germination rate on a wave;
- A huge range of models and additional equipment for fishing, recreation and travel.
TRAVEL catamarans, even the largest models, are easily moves on the oars. With the low-power, and therefore cost-effective and low-cost engines, these boats are using the whole speed range, reaching 19 kilometers per hour with the engine of 5 hp with one person. Moreover, each additional passenger will reduce the speed by only 1-1.5 km per hour. All TRAVEL-MAX catamarans have four pressurized compartments, self-draining valve in the cockpits, reinforced transom for engine power of up to 10 hp, bottom that does not touch the water surface, tough non-slip deck and protection of the balloons. These things allow you to not pay attention to rocks and driftwood, and turn over, with a width of 240 cm, is impossible.
TRAVEL catamarans are perfectly fit for relaxation and traveling with your family or company. You can sunbathe and swim, fish and hunt, cook and eat, travel and live on the water. In just a few minutes you can inflate special flooring made off PVC, and put two-layer tent 3 + 1, securely fastened to the boat. If this is not enough, you can add one or two side platforms, turning your catamaran into large comfortable cruiser, which comfortably accomodate 7 adults and 3 children! The total used area of this Boathouse can reach 20 square meters and load capacity - almost 2t! Sleeping on the water in a boat is very comfortable - warm, soft and cozy. And most importantly - entirely safe.
Due to its rigid construction, catamaran moves on protected from below, hydrodynamic balloons without touching the water surface and with minimal resistance. With 1L of gasoline you can travel more than 20 km.
"Having a BOATHOUSE - means living with pleasure"
|Catamaran for alloy TRAVEL 700|
|Product Code:||TRAVEL 700|
|Вес настила, кг:||75|
|Габаритные размеры, см:|
|Используемая ширина кокпита, см:||190|
|Размер упаковки, см:||215*55*50|
|Ширина жесткого настила, см:||130|
|Кол-во гермоотсеков, шт:|
|Плотность ткани ПВХ:|
|Плотность ткани ПВХ||900|
|Вес лодки, кг:|
|Вес лодки без настила, кг:||103|
|Вес упаковки: лодка настилом кресла насос рем.комплект сумка||185|
|Осадка при полной нагрузке, см:|
|Осадка при полной нагрузке||28|
|Количество длина кокпитов:|
|Количество и длина кокпитов||132*197*132|
|Макс. мощность двигателя, л.с.:|
|Макс. мощность двигателя||10|
|Максимальный запас хода на 1 л бензина, км:|
|Максимальный запас хода на 1 л бензина||22|
|Размер багажного отделения, см:|
|Размер багажного отделения||180*110|
|Спальных мест, чел.:|
|Толщина усиленного транца, мм:|
|Толщина усиленного транца, мм:||48|
|Максимальная скорость, км/ч:|
|Максимальная скорость на веслах||6|
|Максимальная скорость с двигателем 2,5 л.с||13|
|Максимальная скорость с двигателем 6 л.с||19|
1. Casing with inflatable balloons, reinforced transom and front frame - 1. 2. Germotooseki - 4. 3. Interceptors - 2. 4. The intermediate frame - 2. 5. The front locker - 1. 6. Aluminum pipe - 1. 7. Pali in aluminum profiles - 7. 8. Total valves - 8. 9. Securing the flooring on cylinders - 14. 10. Fixing equipment - 6.
11. Privalniy bar - 2. 12. Redan in the bow - 2. 13. Roiling edited with PVC cloth - 2. 14. Stabilizers of exchange rate stability - 2. 15. Closing of cylinders along the entire length - 2. 16. The insurance line - 2. 17. Trays for towing and carrying - 2. 18. Mooring and carrying handles - 2. 19. Vesla with stainless steel oarlocks and paddle holders - 2.
20. Protective PVC cape on the locker - 1. 21. Cover for the boat - 1. 22. Bag for flooring and equipment - 2. 23. The pump is 6 liters - 1. 24. Rem.set.-1. 25. The package of documents - 1.
