Catamaran for alloy TRAVEL 631

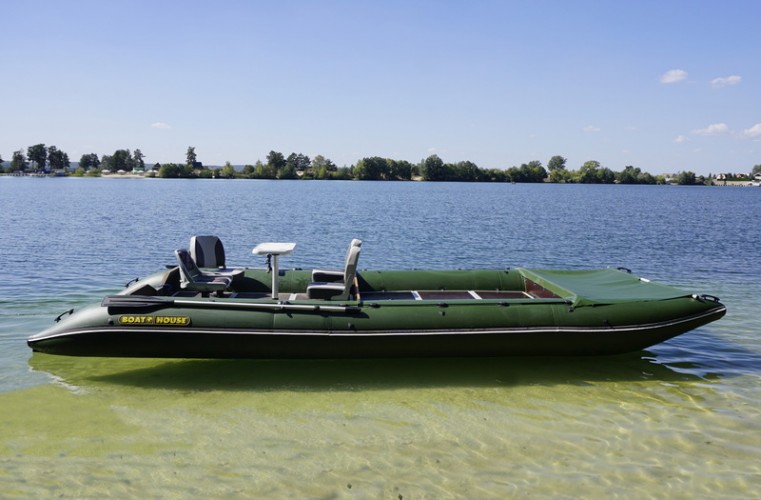

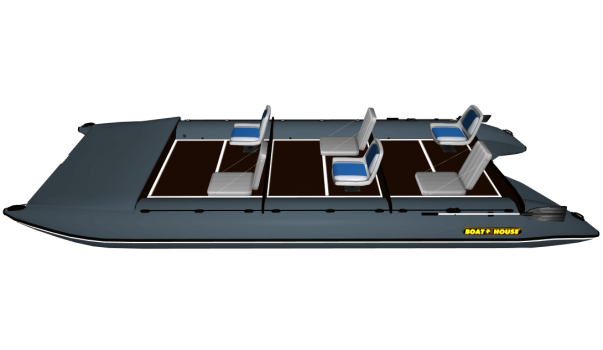

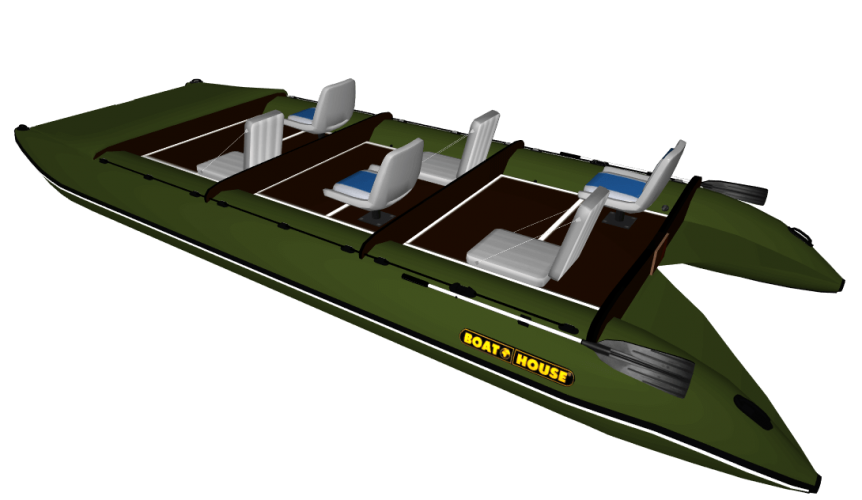

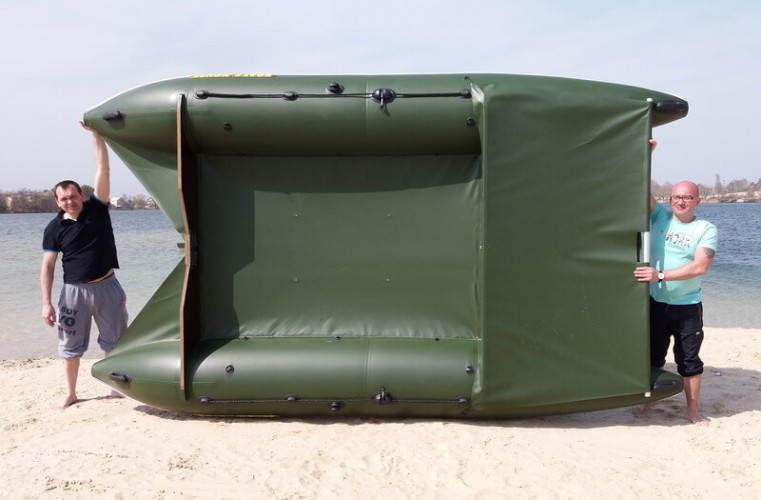

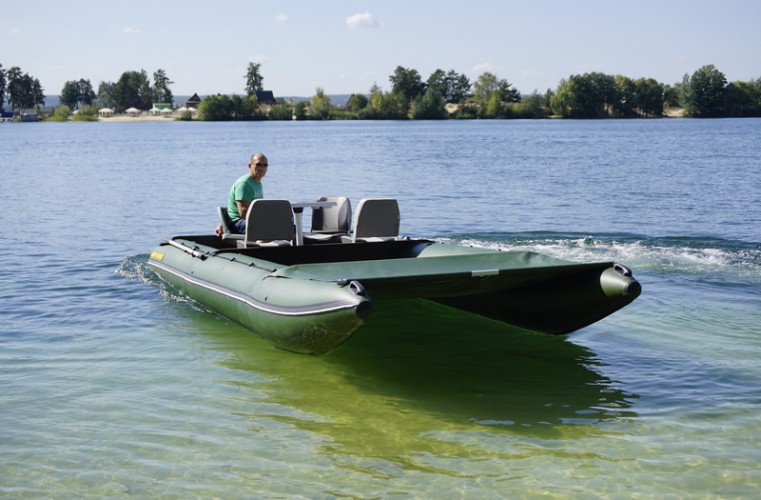

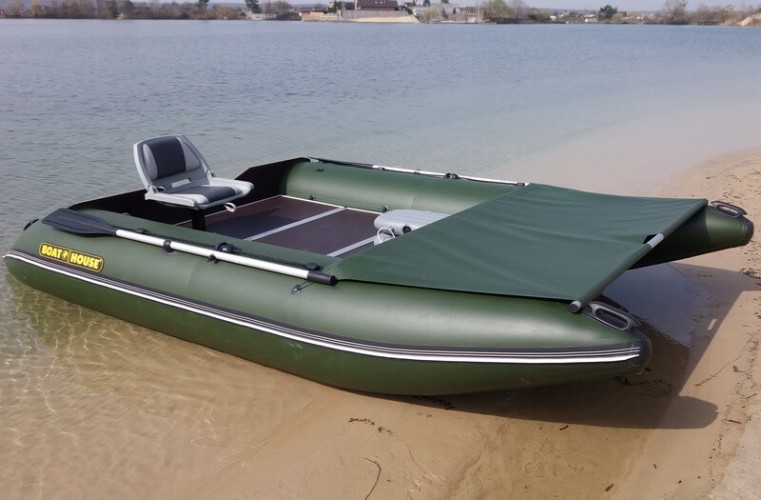

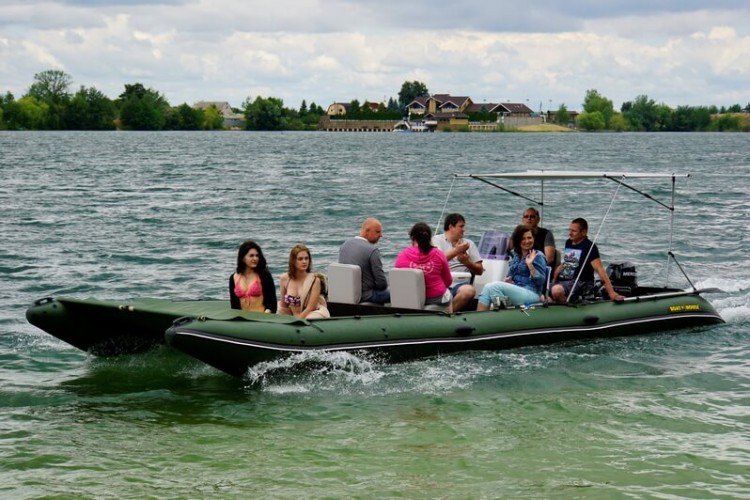

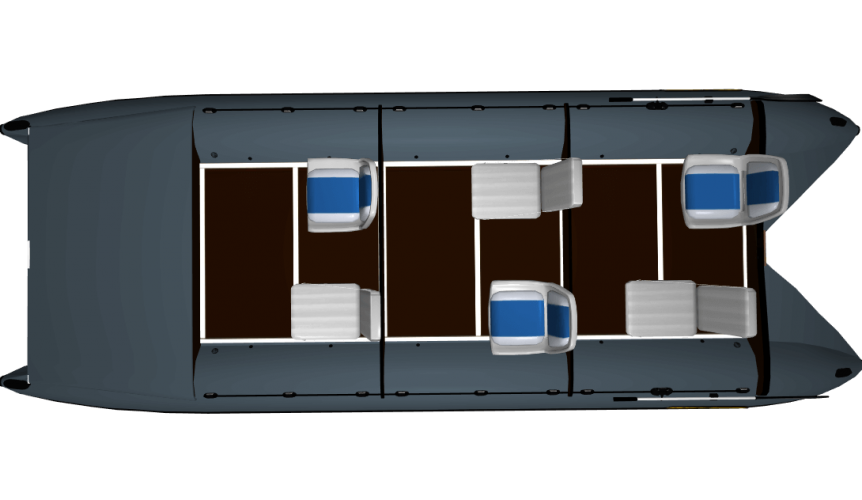

Catamaran TRAVEL 631 TRAVEL 631 is a large six-seater catamaran with hydrodynamic cylinders, a diameter of 55 cm and a total width of 240 cm. The maximum number of passengers can be up to 12 people. This model is designed not so much for travelers as for fishermen and hunters. All the internal space of the catamaran is divided by frames into three cockpits, each 132 cm long. No other inflatable boat allows you to fish or hunt with such comfort. Each has its own isolated cockpit, which can be equipped at its own discretion: install rotary fishing seats, or put your favorite shore, echo sounder, rod holders and much, much more. You can use the boat as a mobile, I find by the echo sounder the accumulation of fish on the water's edge, trolling or catching catfish.

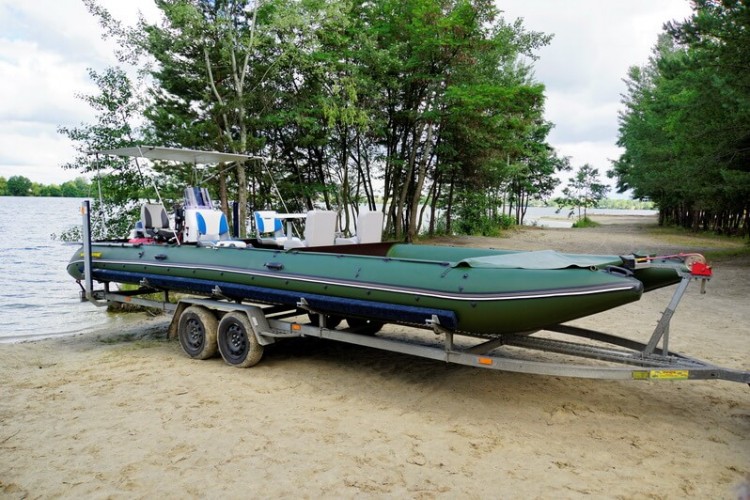

Catamarans Travel 631 in all respects is very good for fishing and hunting: excellent cross-country ability, excellent stability, economy, use of the entire speed range and self-draining cockpits. But the main thing is a smooth, non-sliding deck with a large area, which allows everyone to stay with great comfort, without hampering each other. The catamaran is going very easily and quickly. Pumping the main volume of air cylinders electric pump, in 20-30 minutes you will already be on the water. But if you have a lot of additional equipment, it is better to transport it on the carriage. Then you can install the engine with remote control, and the descent to the water will take only a few minutes.

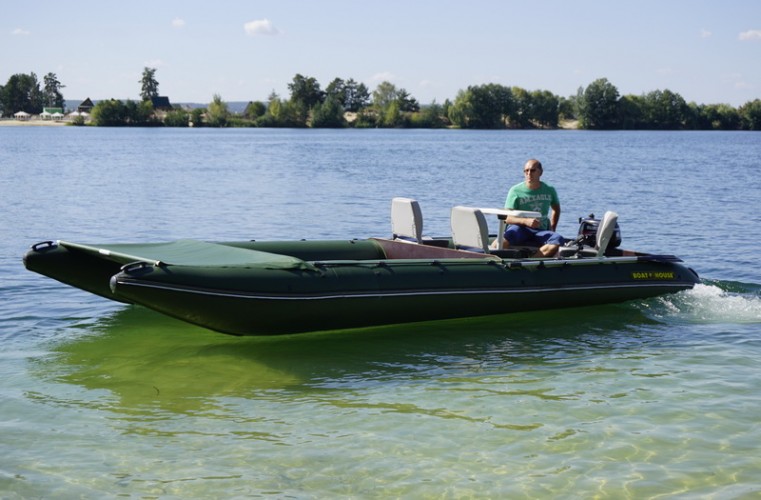

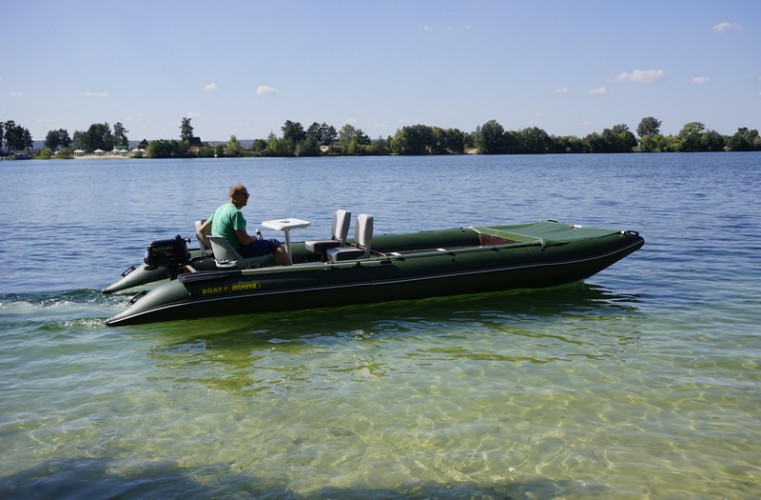

Especially it is necessary to note excellent running characteristics and increased safety. Thanks to a very rigid design, 55-m cylinders, not touching the bottom water and good length, the boat does not fail between the waves. Therefore, if you are caught by bad weather and started to storm, you can not worry much - Trevel Max 631 will take you safe and sound. Even a meter wave is not a hindrance for him. A motor, a power of 5 - 6 hp. it is quite enough (for skeptics - it is checked already more than once). The speed on it, with three fishermen on board, will be quite decent - 15 - 16 km per hour. But it is desirable to choose a motor with a long leg, although calm water and an ordinary motor is enough.
All the basic information about TRAVEL catamarans can be found in the "General description" section, where you can get acquainted with the features and characteristics of the entire model line of these large catamarans. All TRAVEL models are structurally identical, except for the length and position of the frames, and accordingly - the values of total weight, carrying capacity and passenger capacity.

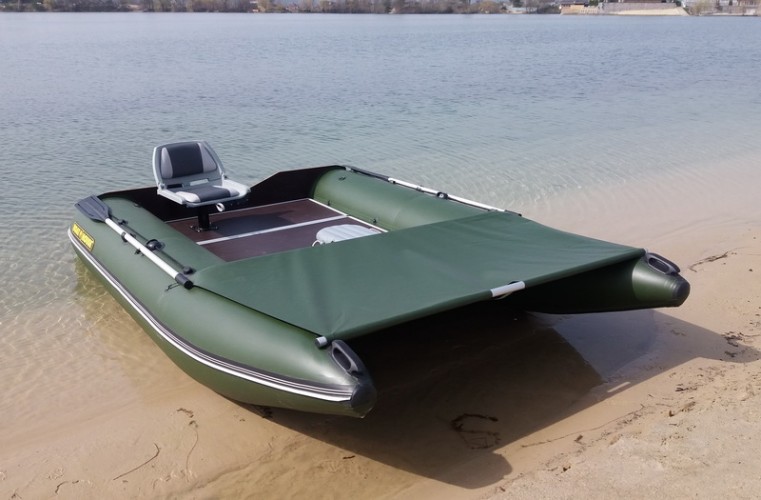

Front take-out of cylinders is 140 cm, of which 110 cm is a large locker, into which all things and numerous equipment for fishing or hunting can easily be placed. Large removal of cylinders is necessary for good germination on the wave, excellent stability of the boat and its "off-road" qualities - patency.
The rear removal of the cylinders is 90 cm, on which the spoilers are installed. It is also very important for the correct weighting of the boat and sufficient buoyancy of the stern. And also - to maintain the horizontal position of the boat during acceleration and at any speed. Interceptors protect from splashes and give an additional lift force to the stern.
"Having BOATHOUSE - you live with pleasure".

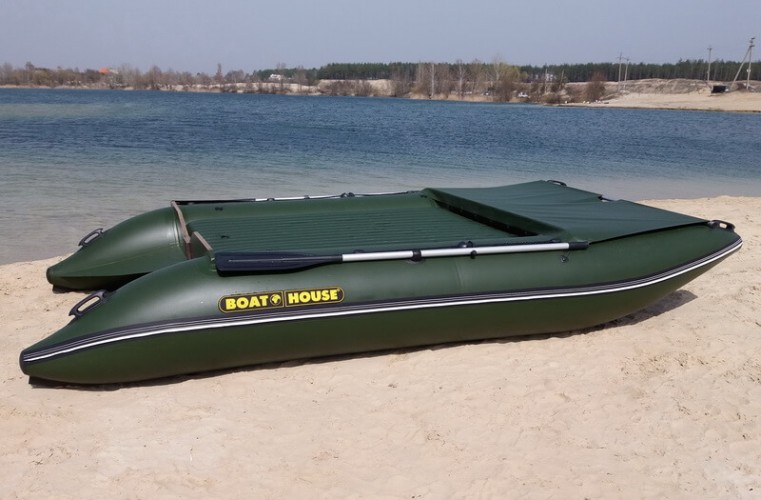

Catamarans TRAVEL - are the biggest inflatable boats manufactured by BOATHOUSE. They are made of five-layered german PVC fabric, marine plywood and aluminum. Very safe and reliable "frame" design, with protection of the balloons over the entire length, indicates the quality of the catamarans. These boats are great for travel in any water areas: from medium and mountain rivers to large water reservoirs and sea.
- are large, comfortable, and safe water "SUVs".
Thanks to quick and easy assembly, excellent stability and passability, they are perfect for hunting and fishing, diving and multi-day trips. Thanks to very wide cockpit (the width of hard flooring - is 130 cm, and used width of the boat - is 190 cm), diameter of balloons is 55 cm, absolutely flat rigid deck with non-slip covering, self-draining cockpits and a huge locker in the bow of the boat, size of 180 cm x 105 cm. A large load capacity allows us to accommodate the passengers and all their equipment.
TRAVEL catamarans, despite its size, as well as all Boathouse models, differs excellent hydrodynamics and excellent technical and operational characteristics. Here are the main benefits:
- Easy and quick assembly;
- A large load capacity;
- Rigidity and absolute safety;
- Increased passability;
- A huge living space;
- The opportunity to live on the water;
- Good controllability and speed;
- Excellent stability, directional stability and germination rate on a wave;
- A huge range of models and additional equipment for fishing, recreation and travel.
TRAVEL catamarans, even the largest models, are easily moves on the oars. With the low-power, and therefore cost-effective and low-cost engines, these boats are using the whole speed range, reaching 19 kilometers per hour with the engine of 5 hp with one person. Moreover, each additional passenger will reduce the speed by only 1-1.5 km per hour. All TRAVEL-MAX catamarans have four pressurized compartments, self-draining valve in the cockpits, reinforced transom for engine power of up to 10 hp, bottom that does not touch the water surface, tough non-slip deck and protection of the balloons. These things allow you to not pay attention to rocks and driftwood, and turn over, with a width of 240 cm, is impossible.

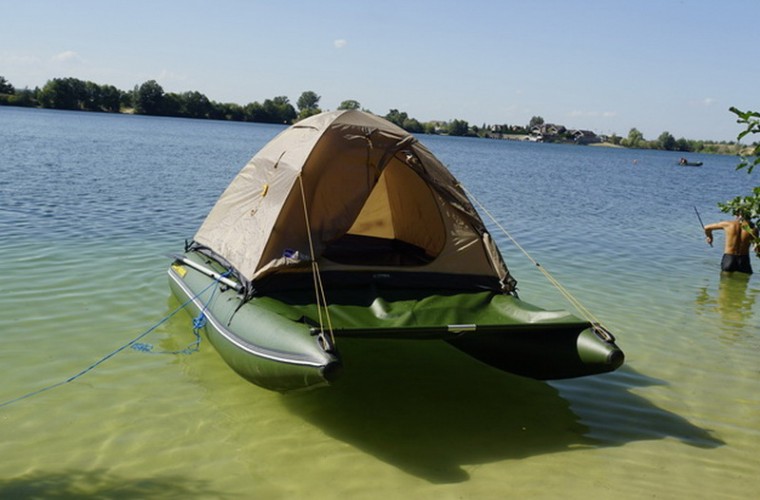

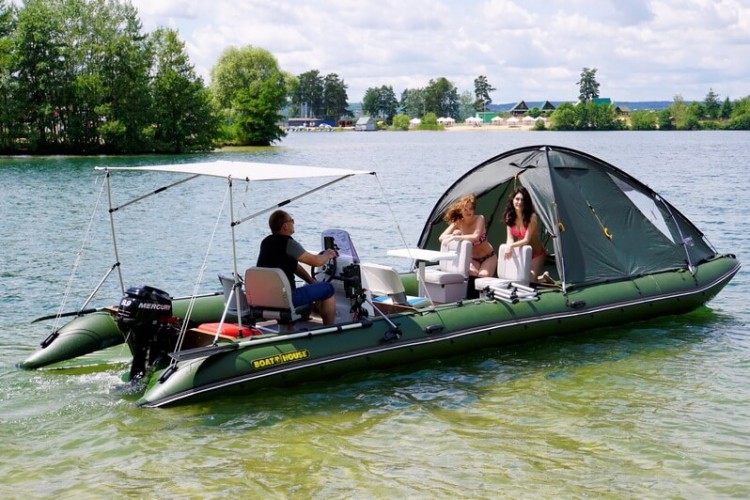

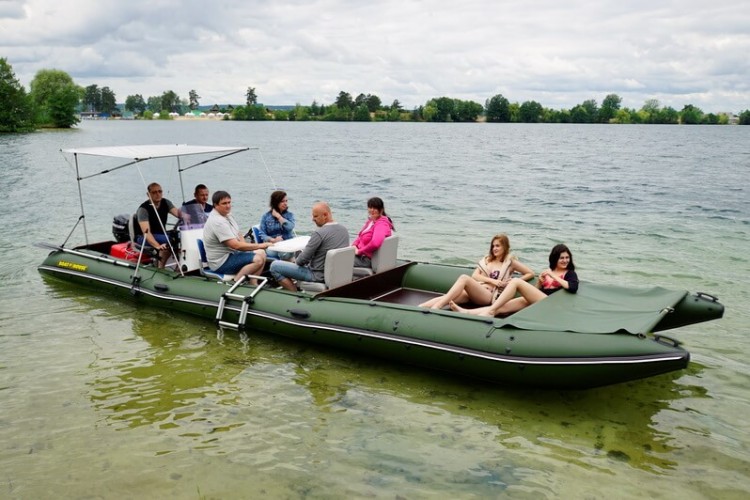

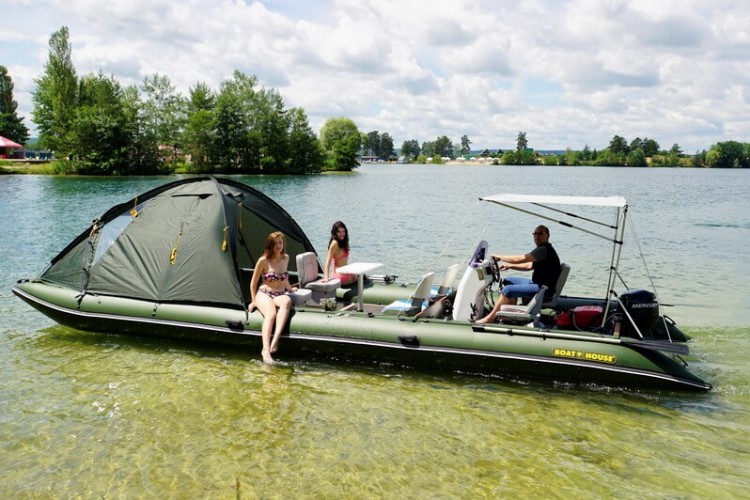

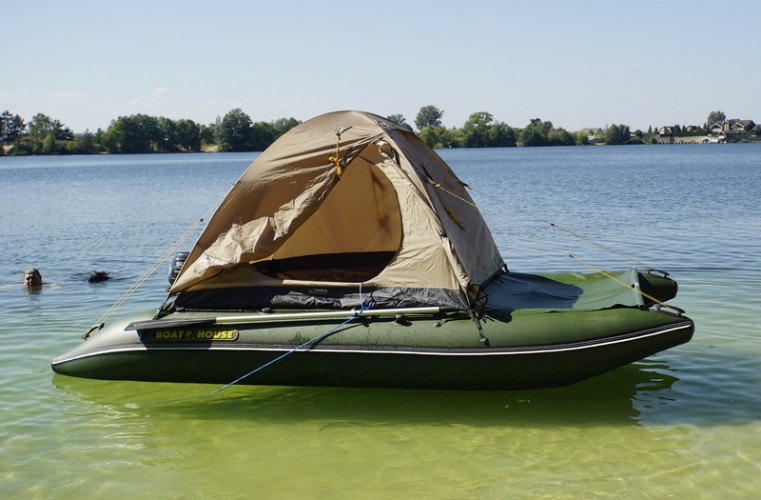

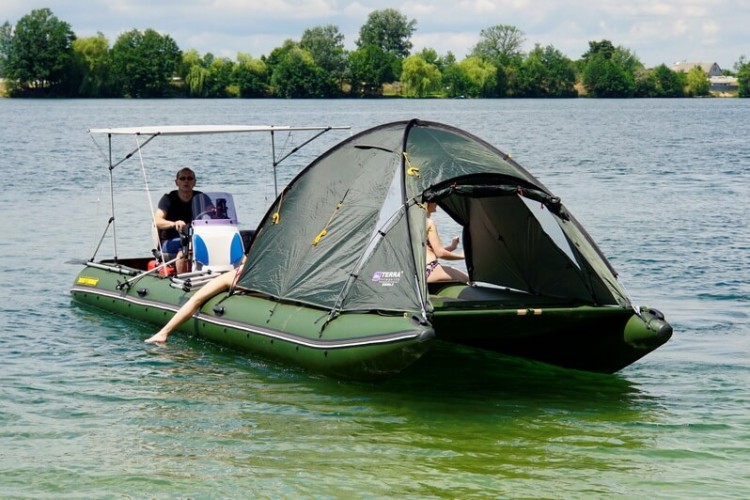

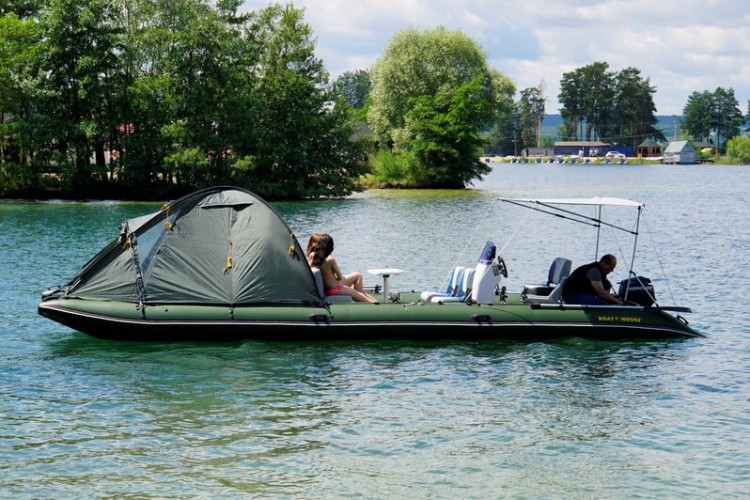

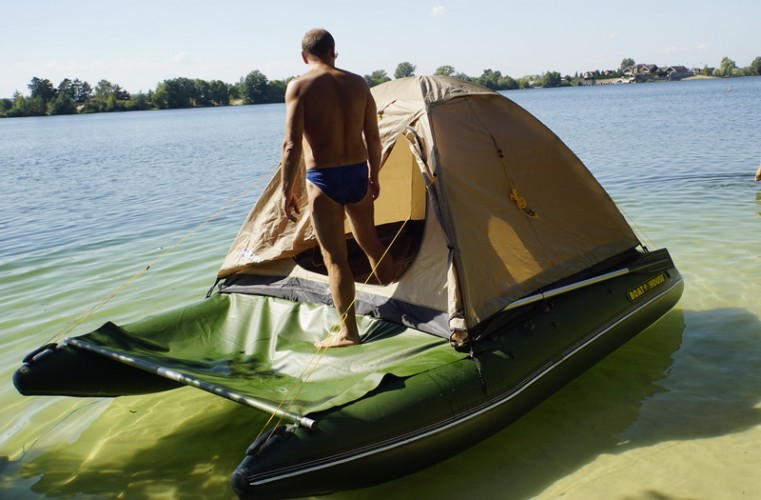

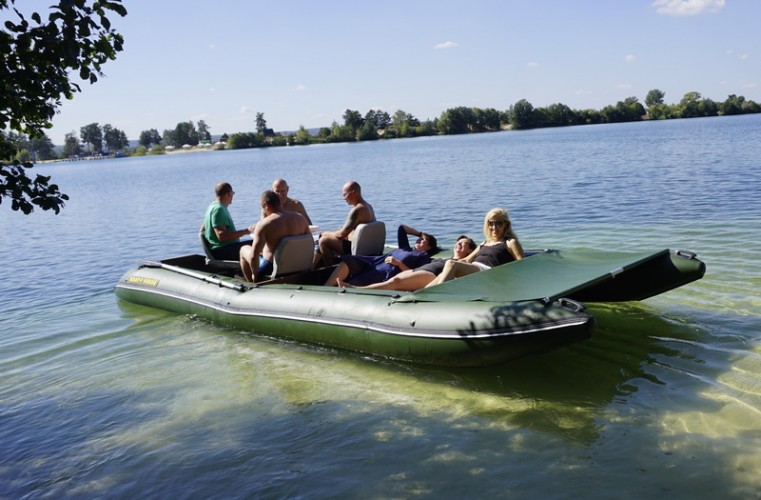

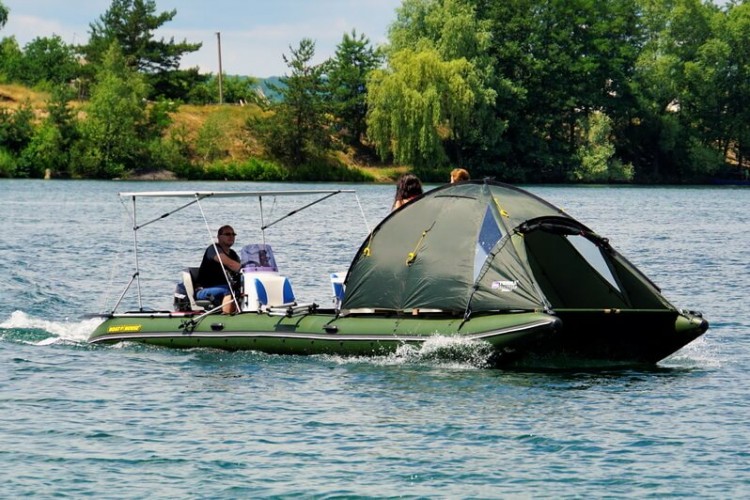

TRAVEL catamarans are perfectly fit for relaxation and traveling with your family or company. You can sunbathe and swim, fish and hunt, cook and eat, travel and live on the water. In just a few minutes you can inflate special flooring made off PVC, and put two-layer tent 3 + 1, securely fastened to the boat. If this is not enough, you can add one or two side platforms, turning your catamaran into large comfortable cruiser, which comfortably accomodate 7 adults and 3 children! The total used area of this Boathouse can reach 20 square meters and load capacity - almost 2t! Sleeping on the water in a boat is very comfortable - warm, soft and cozy. And most importantly - entirely safe.
Due to its rigid construction, catamaran moves on protected from below, hydrodynamic balloons without touching the water surface and with minimal resistance. With 1L of gasoline you can travel more than 20 km.
"Having a BOATHOUSE - means living with pleasure"
|Catamaran for alloy TRAVEL 631|
|Product Code:||TRAVEL 631|
|Вес настила, кг:||65|
|Габаритные размеры, см:|
|Используемая ширина кокпита, см:||190|
|Размер упаковки, см:||215*55*45|
|Ширина жесткого настила, см:||130|
|Кол-во гермоотсеков, шт:|
|Плотность ткани ПВХ:|
|Плотность ткани ПВХ||900|
|Вес лодки, кг:|
|Вес лодки без настила, кг:||97|
|Вес упаковки: лодка настилом кресла насос рем.комплект сумка||169|
|Осадка при полной нагрузке, см:|
|Осадка при полной нагрузке||28|
|Количество длина кокпитов:|
|Количество и длина кокпитов||3*132|
|Макс. мощность двигателя, л.с.:|
|Макс. мощность двигателя||10|
|Максимальный запас хода на 1 л бензина, км:|
|Максимальный запас хода на 1 л бензина||22|
|Размер багажного отделения, см:|
|Размер багажного отделения||180*110|
|Спальных мест, чел.:|
|Толщина усиленного транца, мм:|
|Толщина усиленного транца, мм:||48|
|Максимальная скорость, км/ч:|
|Максимальная скорость на веслах||6|
|Максимальная скорость с двигателем 2,5 л.с||14|
|Максимальная скорость с двигателем 6 л.с||19|
1. Casing with inflatable balloons, reinforced transom and front frame - 1. 2. Germotooseki - 4. 3. Interceptors - 2. 4. The intermediate frame - 2. 5. The front locker - 1. 6. Aluminum pipe - 1. 7. Pali in aluminum profiles - 6. 8. Total valves - 6. 9. Securing of flooring on cylinders - 12. 10. Fixing equipment - 6.
11. Privalniy bar - 2. 12. Redan in the bow - 2. 13. Roiling edited with PVC cloth - 2. 14. Stabilizers of exchange rate stability - 2. 15. Closing of cylinders along the entire length - 2. 16. The insurance line - 2. 17. Trays for towing and carrying - 2. 18. Mooring and carrying handles - 2. 19. Vesla with stainless steel oarlocks and paddle holders - 2.
20. Protective PVC cape on the locker - 1. 21. Cover for the boat - 1. 22. Bag for flooring and equipment - 2. 23. The pump is 6 liters - 1. 24. Rem.set.-1. 25. The package of documents - 1.
