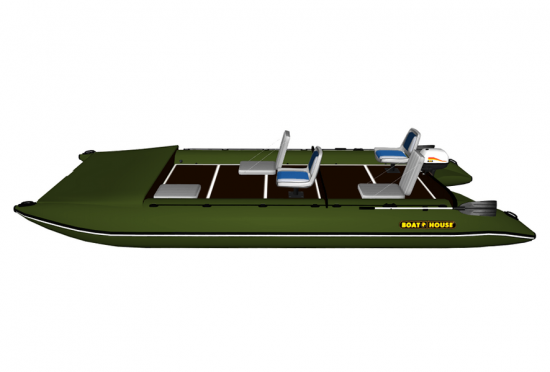

Catamaran for alloy TRAVEL 570
Catamaran TRAVEL 570 All basic information about the TRAVEL catamarans can be found in the "General description" section, where you can see the features and characteristics of these large catamarans. All TRAVEL models are structurally identical, except for the length, and accordingly - the carrying capacity and passenger capacity. Even the high-speed characteristics of the largest model and the smallest one are almost identical.

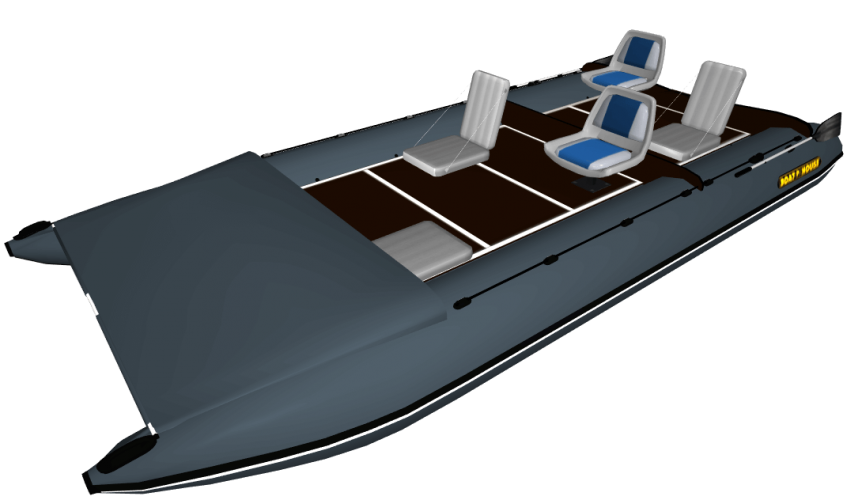

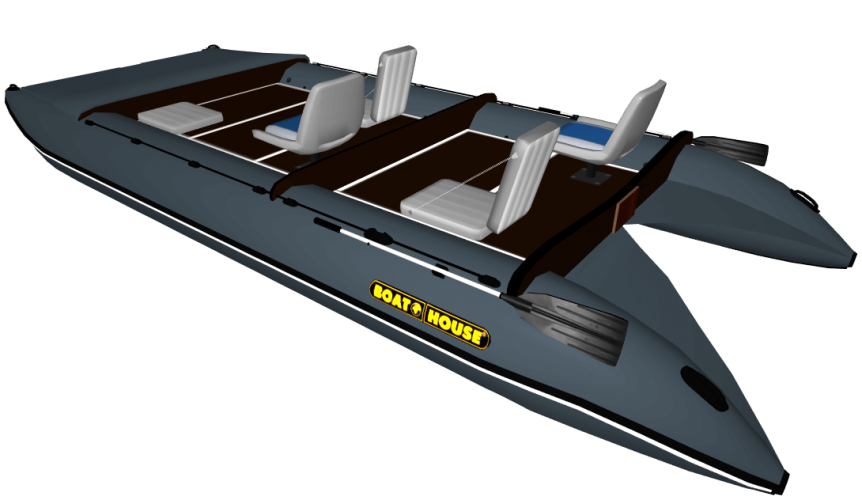

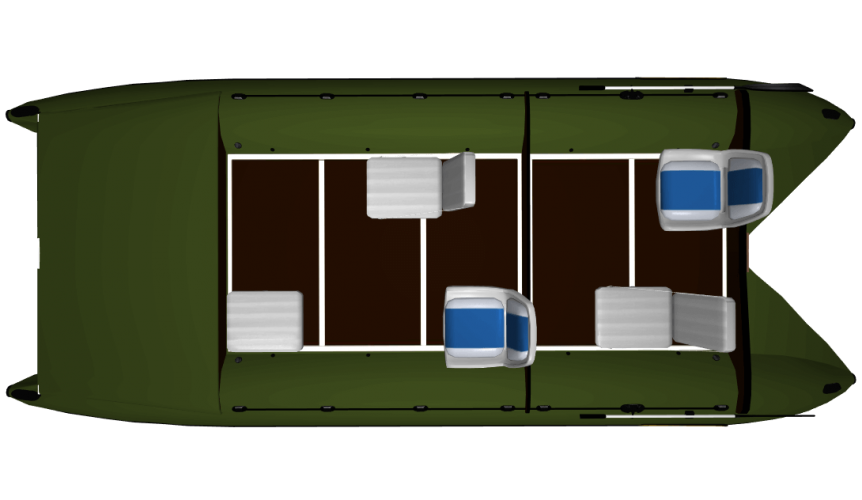

Travel 570 can already be called a cruiser. It consists of a captain's cockpit, 132 cm long and anterior cockpit - 197 cm, on which an inflatable flooring and a quality two-layer tent with a width of 200 cm can be installed. The Travel 570 has an excellent price-to-large ratio. In addition, it has a very light stroke and can move fairly quickly on oars - up to 6 km per hour, under sail and on the lightest and most economical engines. Accordingly, he has a very large autonomous power reserve.
It is ideal for family holidays and travel. Thanks to quick and easy assembly (about 20 minutes), it can be used every weekend not only for hunting and fishing, but also for a pleasant rest on the water, without being tied to the parking lot on the shore. A huge selection of additional equipment and accesories will help you equip this cruise catamaran with everything you need for maximum comfort.
Front take-out of cylinders is 140 cm, of which 110 cm is a huge locker, into which all your things fit easily. Large removal of cylinders is necessary for good germination on the wave, proper weighting of the boat and its "off-road" qualities - patency.
The rear removal of the cylinders is 90 cm, on which the spoilers are installed. It is also very important for the correct weighting of the boat and sufficient buoyancy of the stern. And also - to maintain the horizontal position of the boat during acceleration and at any speed. Interceptors protect from splashes and give an additional lift force to the stern.
TRAVEL 570 consists, practically, of the same advantages. He really can claim the title of "boat of my dreams."
"Having BOTHAUS - you live with pleasure".
Catamarans TRAVEL - are the biggest inflatable boats manufactured by BOATHOUSE. They are made of five-layered german PVC fabric, marine plywood and aluminum. Very safe and reliable "frame" design, with protection of the balloons over the entire length, indicates the quality of the catamarans. These boats are great for travel in any water areas: from medium and mountain rivers to large water reservoirs and sea.
- are large, comfortable, and safe water "SUVs".
Thanks to quick and easy assembly, excellent stability and passability, they are perfect for hunting and fishing, diving and multi-day trips. Thanks to very wide cockpit (the width of hard flooring - is 130 cm, and used width of the boat - is 190 cm), diameter of balloons is 55 cm, absolutely flat rigid deck with non-slip covering, self-draining cockpits and a huge locker in the bow of the boat, size of 180 cm x 105 cm. A large load capacity allows us to accommodate the passengers and all their equipment.
TRAVEL catamarans, despite its size, as well as all Boathouse models, differs excellent hydrodynamics and excellent technical and operational characteristics. Here are the main benefits:
- Easy and quick assembly;
- A large load capacity;
- Rigidity and absolute safety;
- Increased passability;
- A huge living space;
- The opportunity to live on the water;
- Good controllability and speed;
- Excellent stability, directional stability and germination rate on a wave;
- A huge range of models and additional equipment for fishing, recreation and travel.
TRAVEL catamarans, even the largest models, are easily moves on the oars. With the low-power, and therefore cost-effective and low-cost engines, these boats are using the whole speed range, reaching 19 kilometers per hour with the engine of 5 hp with one person. Moreover, each additional passenger will reduce the speed by only 1-1.5 km per hour. All TRAVEL-MAX catamarans have four pressurized compartments, self-draining valve in the cockpits, reinforced transom for engine power of up to 10 hp, bottom that does not touch the water surface, tough non-slip deck and protection of the balloons. These things allow you to not pay attention to rocks and driftwood, and turn over, with a width of 240 cm, is impossible.
TRAVEL catamarans are perfectly fit for relaxation and traveling with your family or company. You can sunbathe and swim, fish and hunt, cook and eat, travel and live on the water. In just a few minutes you can inflate special flooring made off PVC, and put two-layer tent 3 + 1, securely fastened to the boat. If this is not enough, you can add one or two side platforms, turning your catamaran into large comfortable cruiser, which comfortably accomodate 7 adults and 3 children! The total used area of this Boathouse can reach 20 square meters and load capacity - almost 2t! Sleeping on the water in a boat is very comfortable - warm, soft and cozy. And most importantly - entirely safe.
Due to its rigid construction, catamaran moves on protected from below, hydrodynamic balloons without touching the water surface and with minimal resistance. With 1L of gasoline you can travel more than 20 km.
"Having a BOATHOUSE - means living with pleasure"
|Catamaran for alloy TRAVEL 570|
|Product Code:||TRAVEL 570|
|Вес настила, кг:||54|
|Габаритные размеры, см:|
|Используемая ширина кокпита, см:||190|
|Размер упаковки, см:||215*50*40|
|Ширина жесткого настила, см:||130|
|Кол-во гермоотсеков, шт:|
|Плотность ткани ПВХ:|
|Плотность ткани ПВХ||900|
|Вес лодки, кг:|
|Вес лодки без настила, кг:||81|
|Вес упаковки: лодка настилом кресла насос рем.комплект сумка||141|
|Осадка при полной нагрузке, см:|
|Осадка при полной нагрузке||28|
|Количество длина кокпитов:|
|Количество и длина кокпитов||1*132 и 1*197|
|Макс. мощность двигателя, л.с.:|
|Макс. мощность двигателя||10|
|Максимальный запас хода на 1 л бензина, км:|
|Максимальный запас хода на 1 л бензина||22|
|Размер багажного отделения, см:|
|Размер багажного отделения||180*110|
|Спальных мест, чел.:|
|Толщина усиленного транца, мм:|
|Толщина усиленного транца, мм:||48|
|Максимальная скорость, км/ч:|
|Максимальная скорость на веслах||6|
|Максимальная скорость с двигателем 2,5 л.с||14|
|Максимальная скорость с двигателем 6 л.с||19|
1. Casing with inflatable balloons, reinforced transom and front frame - 1.
2. Germotooseki - 4.
3. Interceptors - 2.
4. The intermediate frame - 1.
5. The front locker - 1.
6. Aluminum pipe - 1.
7. Pali in aluminum profiles - 5.
8. Total valves - 6.
9. Securing of flooring on cylinders - 10.
10. Fixers of flooring - 4.
11. Privalniy bar - 2.
12. Redan in the bow - 2. 13. Roiling edited with PVC cloth - 2. 14. Stabilizers of exchange rate stability - 2. 15. Closing of cylinders along the entire length - 2. 16. The insurance line - 2. 17. Trays for towing and carrying - 2. 18. Mooring and carrying handles - 2. 19. Vesla with stainless steel oarlocks and paddle holders - 2. 20. Protective PVC cape on the locker - 1. 21. Cover for the boat - 1. 22. Bag for flooring and equipment - 2.
23. The pump is 6 liters - 1.
25. The package of documents - 1.
