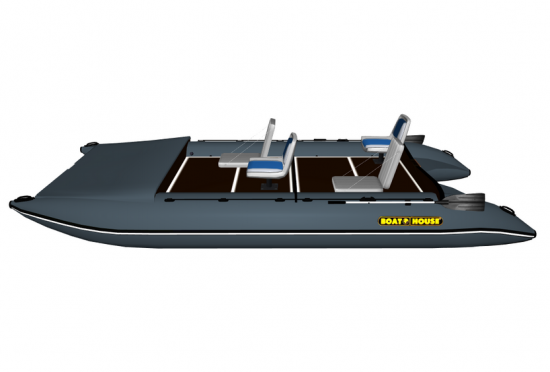

Catamaran for alloy TRAVEL 500
Catamaran TRAVEL 500

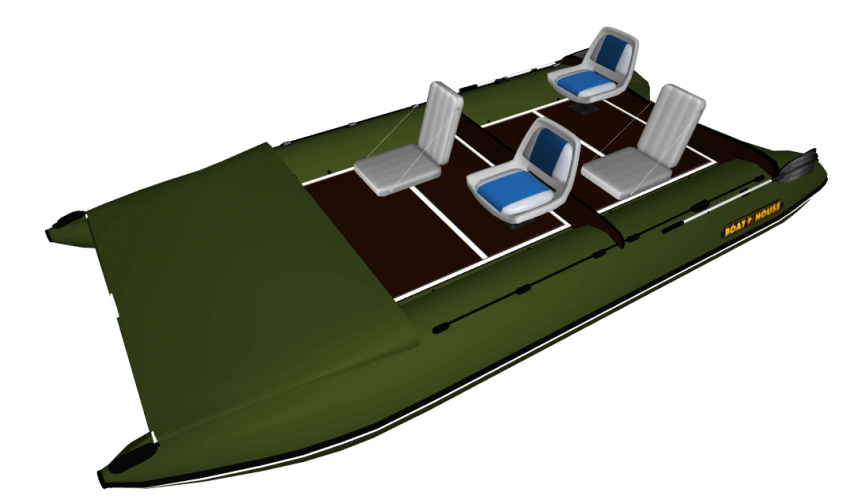

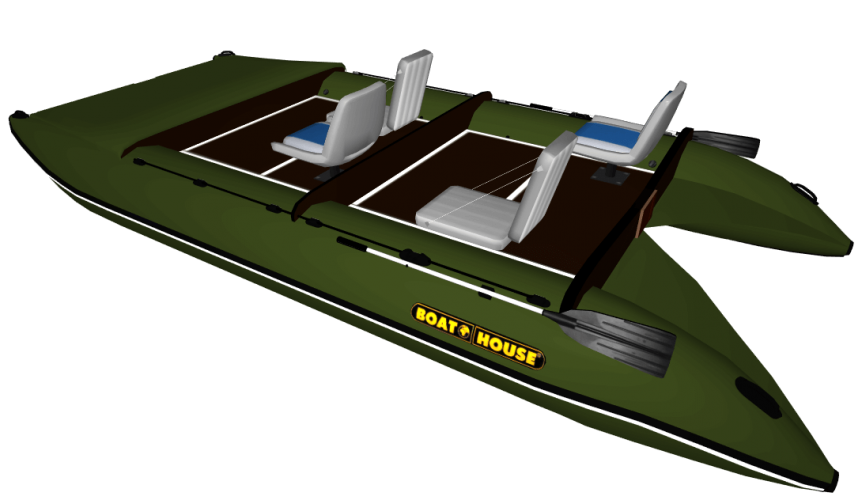

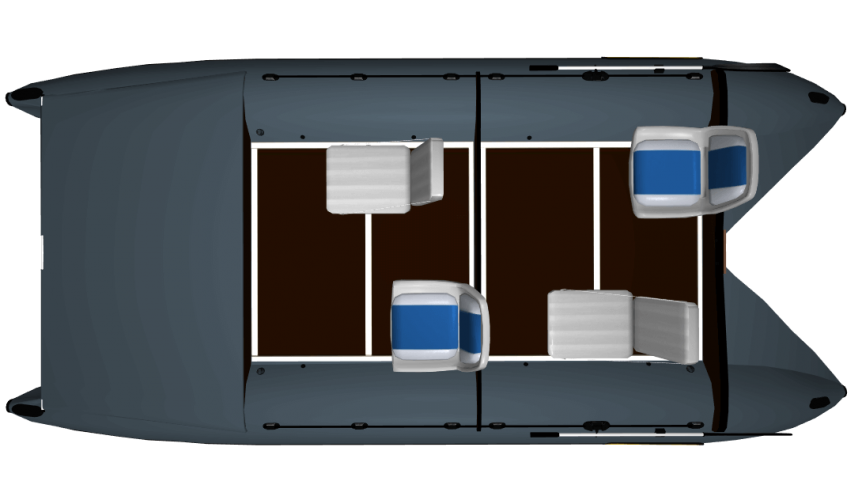

TRAVEL 500 is a large four-seater catamaran with a very rigid design. Thanks to the intermediate frame, which divides the boat into two cockpits, 132 cm long and hard flooring in an aluminum profile that rests against the transom, frames and cylinders. This layout allows you to comfortably accommodate four adults and perfectly behave in large water areas, and even, on a meter wave. But the tent is not installed on this model.
TRAVEL 500 is ideal for professional fishermen or hunters. The width of the boat allows two adult men to sit next to each other, and there is still a passage between them. To equip the cockpits for specific purposes is a huge selection of additional. equipment and accessories.
This catamaran is going very easily in 15 minutes by one person. And when folded, two people take it out of the car or trailer and carry it to the river. Excellent stability and non-slip wide smooth deck - can very confidently feel, standing in a boat, and climb into the most remote and remote places. And this is very important for hunters and fishermen. Due to its rigid construction, the Travel-Max 500 has a very high "off-road" potential and excellent technical and operational characteristics, including economic ones.
General information about TRAVEL catamarans is in the "General description" section, where you can see the features and characteristics of this model line. All TRAVEL models are structurally identical, except for the length and location of the transverse frames, and accordingly - the carrying capacity and passenger capacity.
The large front take-out of cylinders is 140 cm, of which 110 cm is a huge chest, 180 cm wide. It easily accommodates all the numerous equipment for fishing or hunting. A protective PVC cape protects your property from the rain. Large removal of cylinders is necessary for good germination on the wave, proper weighting of the boat and its "off-road" qualities - that is, patency.
The rear take-off of the cylinders is 90 cm, on which the PVC spoilers (similar to transom plates) are installed. It is also very important for the correct weighting of the boat and sufficient buoyancy of the stern. And also - to maintain the horizontal position of the boat during acceleration and any speed of movement.
"Having BOTHAUS - you live with pleasure".
Catamarans TRAVEL - are the biggest inflatable boats manufactured by BOATHOUSE. They are made of five-layered german PVC fabric, marine plywood and aluminum. Very safe and reliable "frame" design, with protection of the balloons over the entire length, indicates the quality of the catamarans. These boats are great for travel in any water areas: from medium and mountain rivers to large water reservoirs and sea.
- are large, comfortable, and safe water "SUVs".
Thanks to quick and easy assembly, excellent stability and passability, they are perfect for hunting and fishing, diving and multi-day trips. Thanks to very wide cockpit (the width of hard flooring - is 130 cm, and used width of the boat - is 190 cm), diameter of balloons is 55 cm, absolutely flat rigid deck with non-slip covering, self-draining cockpits and a huge locker in the bow of the boat, size of 180 cm x 105 cm. A large load capacity allows us to accommodate the passengers and all their equipment.
TRAVEL catamarans, despite its size, as well as all Boathouse models, differs excellent hydrodynamics and excellent technical and operational characteristics. Here are the main benefits:
- Easy and quick assembly;
- A large load capacity;
- Rigidity and absolute safety;
- Increased passability;
- A huge living space;
- The opportunity to live on the water;
- Good controllability and speed;
- Excellent stability, directional stability and germination rate on a wave;
- A huge range of models and additional equipment for fishing, recreation and travel.
TRAVEL catamarans, even the largest models, are easily moves on the oars. With the low-power, and therefore cost-effective and low-cost engines, these boats are using the whole speed range, reaching 19 kilometers per hour with the engine of 5 hp with one person. Moreover, each additional passenger will reduce the speed by only 1-1.5 km per hour. All TRAVEL-MAX catamarans have four pressurized compartments, self-draining valve in the cockpits, reinforced transom for engine power of up to 10 hp, bottom that does not touch the water surface, tough non-slip deck and protection of the balloons. These things allow you to not pay attention to rocks and driftwood, and turn over, with a width of 240 cm, is impossible.
TRAVEL catamarans are perfectly fit for relaxation and traveling with your family or company. You can sunbathe and swim, fish and hunt, cook and eat, travel and live on the water. In just a few minutes you can inflate special flooring made off PVC, and put two-layer tent 3 + 1, securely fastened to the boat. If this is not enough, you can add one or two side platforms, turning your catamaran into large comfortable cruiser, which comfortably accomodate 7 adults and 3 children! The total used area of this Boathouse can reach 20 square meters and load capacity - almost 2t! Sleeping on the water in a boat is very comfortable - warm, soft and cozy. And most importantly - entirely safe.
Due to its rigid construction, catamaran moves on protected from below, hydrodynamic balloons without touching the water surface and with minimal resistance. With 1L of gasoline you can travel more than 20 km.
"Having a BOATHOUSE - means living with pleasure"
|Catamaran for alloy TRAVEL 500|
|Product Code:||TRAVEL 500|
|Вес настила, кг:||43|
|Габаритные размеры, см:|
|Используемая ширина кокпита, см:||190|
|Размер упаковки, см:||215*50*35|
|Ширина жесткого настила, см:||130|
|Кол-во гермоотсеков, шт:|
|Плотность ткани ПВХ:|
|Плотность ткани ПВХ||900|
|Вес лодки, кг:|
|Вес лодки без настила, кг:||75|
|Вес упаковки: лодка настилом кресла насос рем.комплект сумка||124|
|Осадка при полной нагрузке, см:|
|Осадка при полной нагрузке||28|
|Количество длина кокпитов:|
|Количество и длина кокпитов||2*132|
|Макс. мощность двигателя, л.с.:|
|Макс. мощность двигателя||10|
|Максимальный запас хода на 1 л бензина, км:|
|Максимальный запас хода на 1 л бензина||22|
|Размер багажного отделения, см:|
|Размер багажного отделения||180*110|
|Спальных мест, чел.:|
|Толщина усиленного транца, мм:|
|Толщина усиленного транца, мм:||48|
|Максимальная скорость, км/ч:|
|Максимальная скорость на веслах||6|
|Максимальная скорость с двигателем 2,5 л.с||14|
|Максимальная скорость с двигателем 6 л.с||19|
1. Casing with inflatable balloons, reinforced transom and front frame - 1. 2. Germotooseki - 4. 3. Interceptors - 2. 4. The intermediate frame - 1. 5. The front locker - 1. 6. Aluminum pipe - 1. 7. Pali in aluminum profiles - 4. 8. Total valves - 4. 9. Securing of flooring on cylinders - 8. 10. Fixers of flooring - 4.
11. Privalniy bar - 2.
12. Redan in the bow - 2.
13. Roiling edited with PVC cloth - 2.
14. Stabilizers of exchange rate stability - 2.
15. Closing of cylinders along the entire length - 2.
16. The insurance line - 2.
17. Trays for towing and carrying - 2.
18. Mooring and carrying handles - 2.
19. Vesla with stainless steel oarlocks and paddle holders - 2.
20. Protective PVC cape on the locker - 1.
21. Cover for the boat - 1. 22. Bag for flooring and equipment - 1. 23. The pump is 6 liters - 1. 24. Rem.set.-1. 25. The package of documents - 1.
