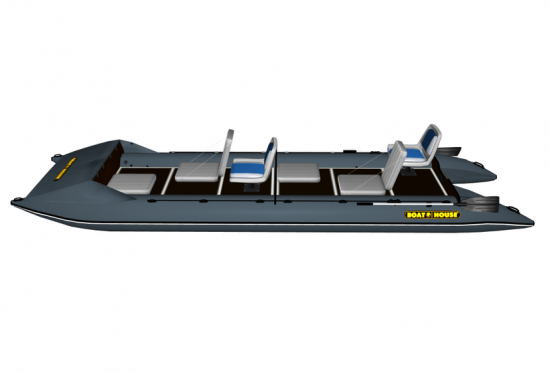

Inflatable catamaran FISHER 590
Basic information about FISHER catamarans is in the "General description" section, where you can get acquainted with the features and characteristics of this model line. At the end of 2015, the third restyling took place, which took into account all the wishes of customers and significantly improved the basic consumer qualities. All FISHER models are structurally identical, except for the length, and accordingly - the carrying capacity and passenger capacity.
FISHER 590 - fully eight-seat boat with excellent driving characteristics and very diverse capabilities. But first of all, FISHER 590 is a cruiser, on the front cockpit of which you can install an inflatable flooring and a large quality tent.
The tent is very securely attached to a catamaran and withstands extreme weather. To sleep in a boat is not only safe, but also very cozy and warm.
The first cockpit (captain's) is 197 cm long and almost one and a half meters of used width. This is quite enough for the comfortable location of several travelers and their property. Do not forget about the front luggage compartment. But this is just one of the options for using this boat. Two large identical cockpits with non-slip smooth surface, allow you to make a lot of different options, depending on the intended use of the boat. What is it worth adding one or two side pads? Get a whole houseboat with two bedrooms - a real BOATHOUSE!
But no matter how you equip the FISHER 590, its excellent running and speed characteristics will not change anyway: at the oars - 7-8 km per hour, under the regular sailing weapon at a wind of 4-5 km per hour - 4 knots (7 km per hour ), and on the motor 5 hp. - more than 20 km per hour!
Front removal of the cylinders is 100 cm, of which 80 cm occupies an open self-draining locker, into which 3 hermetic bags with a volume of 100 l, or cages, podsaks and numerous equipment for fishing are easily placed. Large removal of cylinders is necessary for good germination on the wave, proper weighting of the boat and its "off-road" qualities - that is, patency.
The rear removal of the cylinders is 90 cm, on which the spoilers are installed. It is also very important for the correct weighting of the boat and sufficient buoyancy of the stern. And also - to maintain the horizontal position of the boat during acceleration and at any speed. Interceptors protect from splashes and give an additional lift force to the stern.
"Having BOTHAUS - you live with pleasure".
FISHER inflatable catamarans until the last restyling were called TRAVEL. After the inflatable sailing catamaran of numerous requests from customers, the front locker was made more capacious (300 l) and waterproof. As a result, the design turned out to be identical to SMART-FISHER and SEA FISHER, except for the diameter of the cylinders and overall dimensions. Moreover, these catamarans were liked not only by tourists, but also by fishermen and hunters.
FISHER inflatable catamarans fully live up to their name. They are great for fishing and hunting in hard to reach places, and large models - for rafting and travel. Thanks to a large selection of models, these water-based SUVs combine the best qualities of fishing boats and catamarans for traveling. They are based on a special catamaran structure, all the advantages and disadvantages of which are discussed in detail in the section "On catamarans" and on the main page of our site. What qualities should a modern boat for fishing and hunting have to be comfortable for rafting and traveling?
1. Quick assembly.
All FISHER models assemble very easily and quickly. While the cylinders are pumped by an electric pump, a hard flooring is simply inserted between them under the clamps. And when the catamaran is pumped up to the desired pressure, the flooring is already rigidly fixed between the cylinders, transom and frame. All catamaran assembled. So, Fisher 390 is assembled in 5 - 10 minutes, and the largest model - Fisher 790 - is assembled in 20 minutes.
2. Convenient sizes, good ratio of weight and internal space.
FISHER catamarans have a cylinder diameter of 45 cm and a width of 176 cm. The width used inside (to the safety rail) is 145 cm! Two adults are free to sit next to each other. And for fishing, you can even put your own shore chairs by placing an echo sounder and rod holders on board. Absolutely flat hard flooring with anti-slip coating on the smallest model (Fisher 390) is 197 cm long, and on the largest (Fisher 790) - almost 6 m! The ratio of the weight of the catamarans and the interior space is excellent: the Fisher 390 weighs only 49 kg, and the Fisher 790 - with a 6-meter deck and 10 square meters of usable area - 109 kg.
3. Ease of use.
The design feature of FISHER is that the bottom does not touch water even at full load. This provides excellent cross-country ability and easy travel. Thus, while in the catamaran, you are sitting not in the water, but over the water. It is very convenient for fishing, and for hunting, and for rafting and travel. All FISHER models have an absolutely flat hard floor in an aluminum profile that you can walk confidently on. In front of the catamaran is a closed waterproof locker on a snake with a volume of 300 liters. It can be used for items and equipment. And if it is equipped with tapping valves, then for fish. The diameter of the cylinders of 45 cm can be considered universal: due to the small draft it is possible to walk along the smallest rivers and overgrown shallow waters and, at the same time, fearlessly go to large expanses of water.
4. Safety and reliability.
FISHER inflatable catamarans are made only from German five-layer PVC fabric, marine plywood and aluminum. Catamarans already have four pressurized compartments, cylinder protection from the bottom and side along the entire length, and tapping valves. The whole structure is designed for long and trouble-free operation in any conditions. The design of FISHER catamarans is unsinkable: even if at full load the boat is completely filled with water, it will not sink (there is a buoyancy margin). And through the drain valves in the bottom, all the water will go away in just a few minutes.
FISHER cannot be turned over under normal operating conditions. Even if you put the whole team on one side, the catamaran will not roll over. Thanks to the correct weight distribution, even with a sharp acceleration, the nose of the catamaran never rises above eye level - you always see where to direct the boat.
5. Ease of movement on the oars and efficient use of engine power.
FISHER catamarans have minimal water resistance. Therefore, it is very easy to move on oars or on an electric motor even against the middle course of the river. You can install an engine with a power of up to 6 hp on a standard transom, and up to 15 hp on a reinforced one. A motor with a power of 5-6 hp quite enough for quick and economical movement. The BOATHOUSE catamaran structure has another feature: the speed of the catamaran does not depend on its length. Therefore, the smallest model and the largest will go at the same speed under the same power plant. And one more plus: FISHER catamarans use the entire speed range (from trolling to maximum), without any transitional modes of movement. Therefore, the influence of each additional passenger is very insignificant - the speed decreases by only 1 - 2 km / h.
6. Good cross and economy.
FISHER catamarans are water off-road vehicles, and very economical. For 1 liter of fuel you can go up to 30 km! They can go where ordinary keelboats or flat-bottomed boats do not pass. These are rapids and rivers, and overgrown with vegetation places of water bodies, and large expanses of water. Thanks to their driving characteristics and design features, FISHER catamarans will never let you down even in the most difficult situations.
7. Comfort and a large selection of additional equipment.
FISHER has personal comfortable chairs, tables, sun and rain awnings, fishing and recreation equipment, sailing equipment, side platforms with tents! If you decide to spend a week on fishing or even a whole vacation, just add one or several side platforms with tents to your catamaran (depending on the number of people on board). And then you can fish, travel and live on the water as you like with incredible comfort. In a few minutes, a high-quality two-layer tent is set up directly on the catamaran or on the side platform. Sleeping on the water is very comfortable - warm, soft and comfortable. In this case, you are in complete safety. With the FISHER catamaran, you gain complete independence from the on-shore parking spots. And choose your own routes!
"Having BOATHOUSE (BOTHOUSE) - you live with pleasure."
1. Casing with inflatable balloons, transom and front frame - 1. 2. Germotooseki - 4. 3. Interceptors - 2. 4. The intermediate frame - 1. 5. Front open locker with cast holes - 1. 6. Aluminum pipe - 1. 7. Pali in aluminum profiles - 6. 8. Total valves - 8. 9. Securing of flooring on cylinders - 12. 10. Fixers of flooring - 2. 11. Privalniy bar - 2. 12. Redan in the bow - 2. 13. Roiling edited with PVC cloth - 2. 14. Stabilizers of exchange rate stability - 2. 15. Closing of cylinders along the entire length - 2.
16. The insurance line - 2.
17. Trays for towing and carrying - 2.
18. Mooring and carrying handles - 2.
19. Vesla with stainless steel oarlocks and paddle holders - 2.
20. The seat is inflatable - 0.
21. Inflatable tourist seat - 0.
22. Inflatable captain's chair - 0.
23. Cover for the boat - 1.
24. Bag for flooring and equipment - 2.
25. Pneal pump for 6 liters - 1.
27. The package of documents - 1.
Additional equipment with installation on the boat:
1. Hermetic pile (1 piece) - 14.
2. Reinforced transom (engine power up to 15 hp) - 37.
3. PVC Cape with fasteners on the locker - 38.
4. Enhanced protection of the lower part of the cylinders (for 1 mp) - 4.5.
5. Mudguard in the bow of the boat - 23.
6. Additional handle-ducks for carrying and mooring (2 pcs) - 7.
7. Additional paddles with stainless steel oars and paddle holders - 43.
8. The seat is inflatable - 1
9. Inflatable tourist seat - 40.
10. Inflatable captain's chair - 81.
11. Plastic swivel chair - 110.
12. Folding armchair - 115.
13. Plastic table assembly oval (750 * 450) - 130.
14. Plastic table assembly rectangular (700 * 400) - 130.
15. Inflatable flooring (1970 * 960 * 120) - 135.
16. Double tent with side entrance and anchorages to the boat - 205.
17. Double tent with front entrance, exit and anchors - 310. 18. Awning aluminum aerodynamic 140cm * 180cm - 149. 19. Awning aluminum aerodynamic 280cm * 180cm - 205. 20. Mount for echo sounder - 41. 21. Mount for echo sounder sensor - 14. 22. Mounting for rods - 46. 23. Fastening for a rod on a transom - 17. 24. Rod holder on the transom - 10. 25. Mounts - cup holders (for 6 glasses) - 51. 26. A set of glasses made of stainless steel (6 pcs.) - 34. 27. Anchor roller - 10. 28. Duck plastic - 3. 29. Mounting on board (luggage) - 7. 30. Electropump - 18.
31. Anchor-mushroom 3,7 kg - 17.
32. Anchor-mushroom 4.8 kg - 18.
33. Anchor mushroom 6,2 kg - 20.
34. Life jacket (10 kg - 30 kg) - 18.
35. Life jacket (30 kg - 50 kg) - 21.
36. Life jacket (50 kg - 70 kg) - 24.
37. Life jacket (70 kg - 90 kg) - 27.
38. Life jacket (90 kg - 110 kg) - 29.
39. Life jacket (110 kg - 150 kg) - 32.
