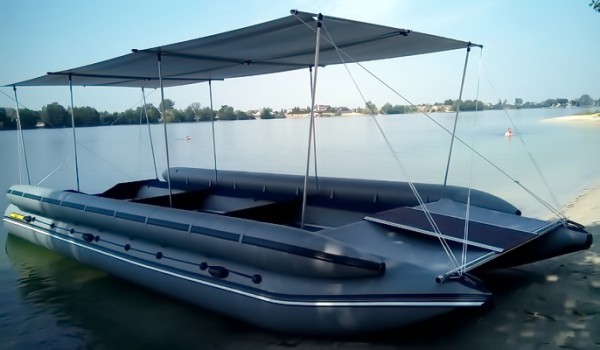

Catamaran TRAVEL XXL 590
Travel XXL 590 is the smallest catamaran of the entire lineup. Its length is 5.93 m and a width of 2.98, while the used width of the cockpit is 2.34 m. This catamaran has two cockpits: 1x132cm, 1x197cm. Its carrying capacity is 1290 kg, and passenger capacity is 18 adults and 2 children.
TRAVEL XXL catamarans are based on the TRAVEL MAX catamarans. Their main purpose is commercial use for transporting people and goods. They are also great for relaxing on water with large companies. How cool it is to have a corporate party and have a party aboard TRAVEL XXL ... A wonderful and memorable vacation!
The water area of using TRAVEL XXL is not limited: they are suitable both for the sea and for any rivers. Meta wave these catamarans pass playfully. On the main cylinders, with a diameter of 67 cm, additional cylinders with a diameter of 32 cm with an offset to the outside are securely fixed. Thus, the seat is the main cylinders, carpeted, and the back - additional cylinders. In the middle you can put tables and chairs. Safety is also at a very high level: in the basic configuration there are 6 pressurized compartments, a self-casting unsinkable design of a catamaran, the best high-quality materials, protection from below along the entire length, even falling out of the catamaran is quite difficult - you need to try very hard!
The width of the hard flooring in the aluminum profile with stringers and with a non-slip coating is 135 cm. Thus, the internal used width of the catamaran is 235 cm and the deck length is up to 593 cm. The overall width is 299 cm and the length is up to 860 cm. In the front part is a huge waterproof locker with a volume of 500 liters. Also, in front is a removable ladder to go ashore. The passenger capacity of TRAVEL XXL catamarans is limited only by carrying capacity. The largest TRAVEL XXL 860 has a carrying capacity of 2100 kg, and passenger capacity - up to 35 people. The draft, however, is only 35 cm. This allows you to go through the shallow water and land directly on the beach.
Powerful transverse frames are used for body rigidity, and the transom has a maximum thickness of 48 mm. It's hard to believe, but an engine with only 6 hp. enough for a confident and very economical movement: with one captain, he accelerates TRAVEL XXL 860 to 18 km / h, with 10 passengers - 12 km / h, and with a full load - 8 km / h. This is the merit of solid cylinders of a special hydrodynamic shape. If you need a reserve of power and speed, then the motor is 15 - 20 hp. will be more than enough.
TRAVEL XXL catamarans are assembled from 20 to 40 minutes, depending on the model, and they can easily be transported to water from 4 to 8 people. They can also be used for family vacations, if you need a large area. If necessary, they can be equipped not only with an awning and furniture, but also with a steering console, dry closet, inflatable flooring and a tent. UV-resistant German PVC has a temperature range from - 50 to + 70 degrees. Therefore, TRAVEL XXL catamarans can “live” on water constantly.
"Having BOATHOUSE - you live with pleasure."
|Catamaran TRAVEL XXL 590|
|Габаритные размеры, см:|
|Используемая ширина кокпита, см:||234|
|Размер упаковки, см:||260*60*40|
|Ширина жесткого настила, см:||135|
|Diameter of additional cylinder||32|
|Кол-во гермоотсеков, шт:|
|Плотность ткани ПВХ:|
|Плотность ткани ПВХ||900+ reinforced bottom protection|
|Осадка при полной нагрузке, см:|
|Осадка при полной нагрузке||36|
|Количество длина кокпитов:|
|Количество и длина кокпитов||1х132, 1х197|
|Макс. мощность двигателя, л.с.:|
|Макс. мощность двигателя||20|
|Толщина усиленного транца, мм:|
|Толщина усиленного транца, мм:||48|
1. The case with inflatable balloons, reinforced transom and front frame - 1
2. Additional cylinders 32 dia. - 2
3. Germotseki - 4
4. Interceptors - 2
5. The intermediate frame - 1
6. The front locker on the snake - 1
7. Aluminum pipe - 7
8. Paels in aluminum profiles - 5
9. Drain valves - 15
10. Flooring latches - 10
11. Chisel - 2
12. Redan in the bow - 2
13. Reservation of redan with PVC cloth - 2
14. Stabilizers of exchange rate stability - 2
15. Triple protection of the bottom of the cylinders along the entire length - 2
16. Safety leera - 2
17. Ring for towing - 1
18. Gangway - 1
19. Carpet on the cylinder - 1
